In seconds, input your vehicle parameters and instantly generate precise 3D hardpoints and open them in SolidWorks—no guesswork, no tedious hand calculations.

Unlike generic CAD plugins or overly complex simulation packages, Wishbone Studio is designed for speed, accuracy, and workflow efficiency. Live outputs are calculated directly from your geometry, tire data, and vehicle setup—helping you move from concept to track-ready performance with confidence.

Key Features:

  • Import saved data or define geometry to build and refine suspension systems.

  • Export SolidWorks macro files with organized 3D sketches of hardpoint locations for wishbones, pushrods, dampers, and steering.

  • Run real-time calculations for tire forces and moments, link loads, scrub radius, motion ratios, ride rates, ride frequency, turning radius, steering ratio, and more.

  • Experiment with different inputs to quickly weigh design options and optimize performance.

  • Outputs formatted to align with FSAE Design Spec Sheet requirements.

  • Flexible for Pikes Peak challengers, prototypes, FSAE cars, and more.

Design, Analyze, and Win

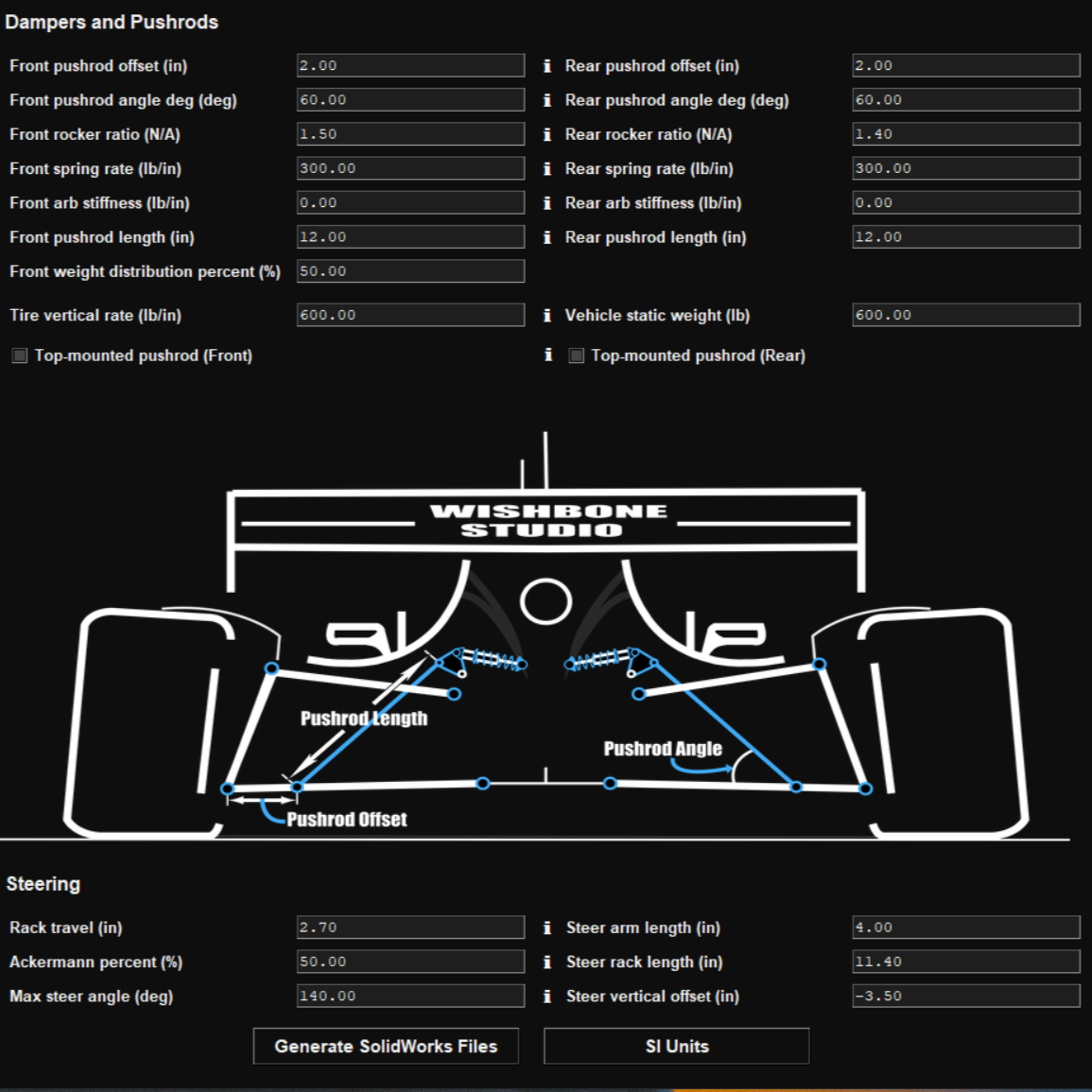

  • Define Vehicle Parameters

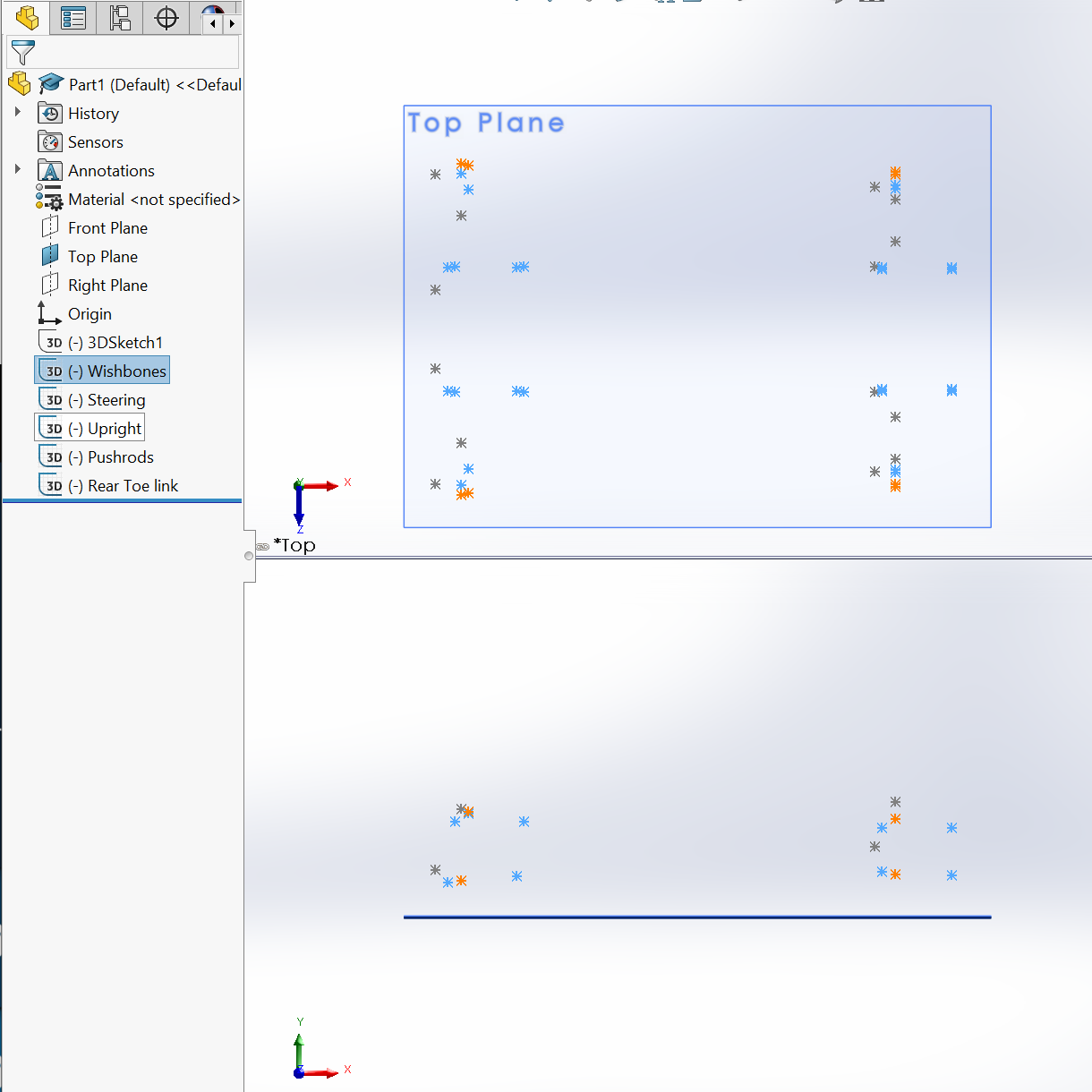

  • Export Hardpoints to Solidworks

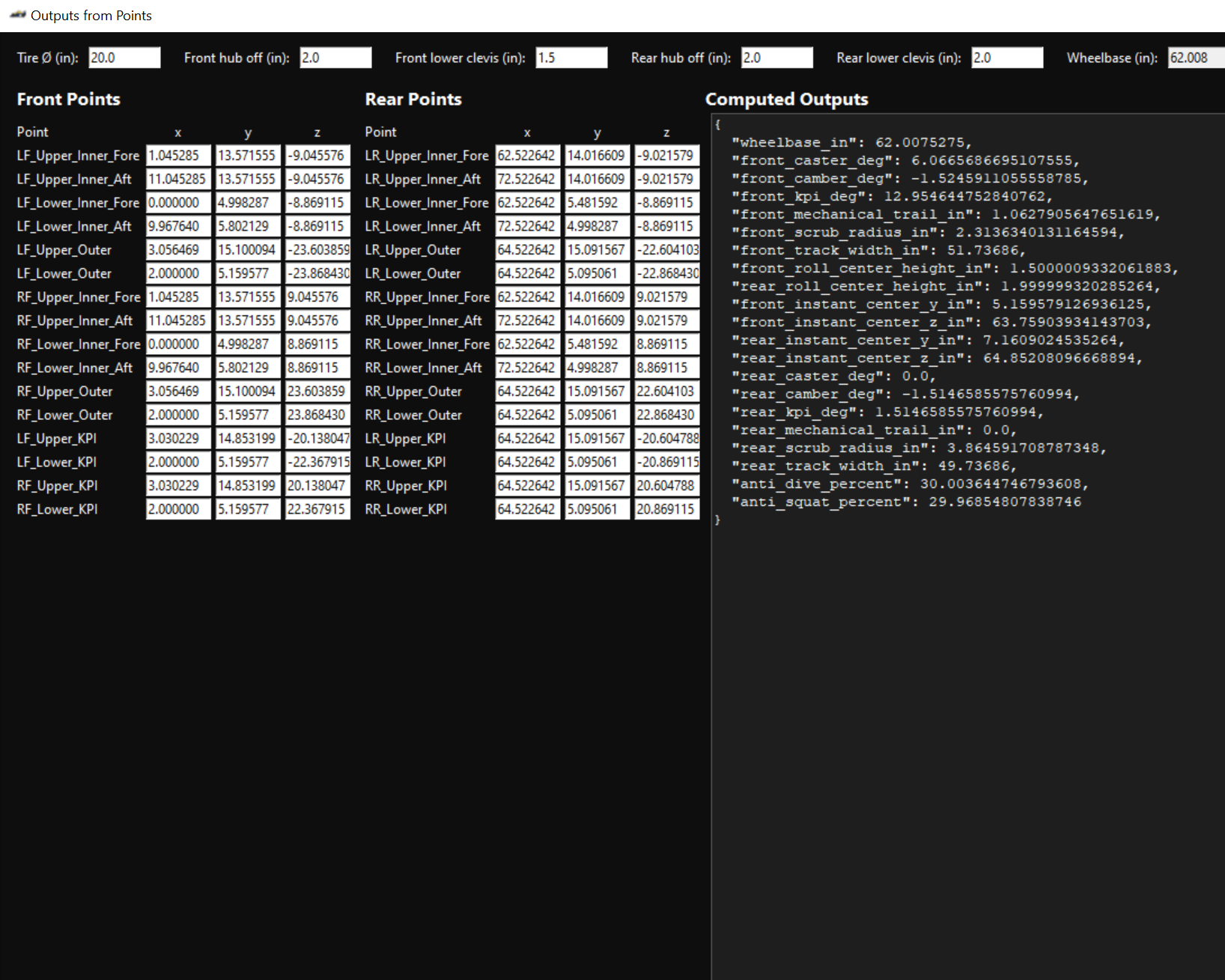

  • View Live Outputs Based on Vehicle Parameters

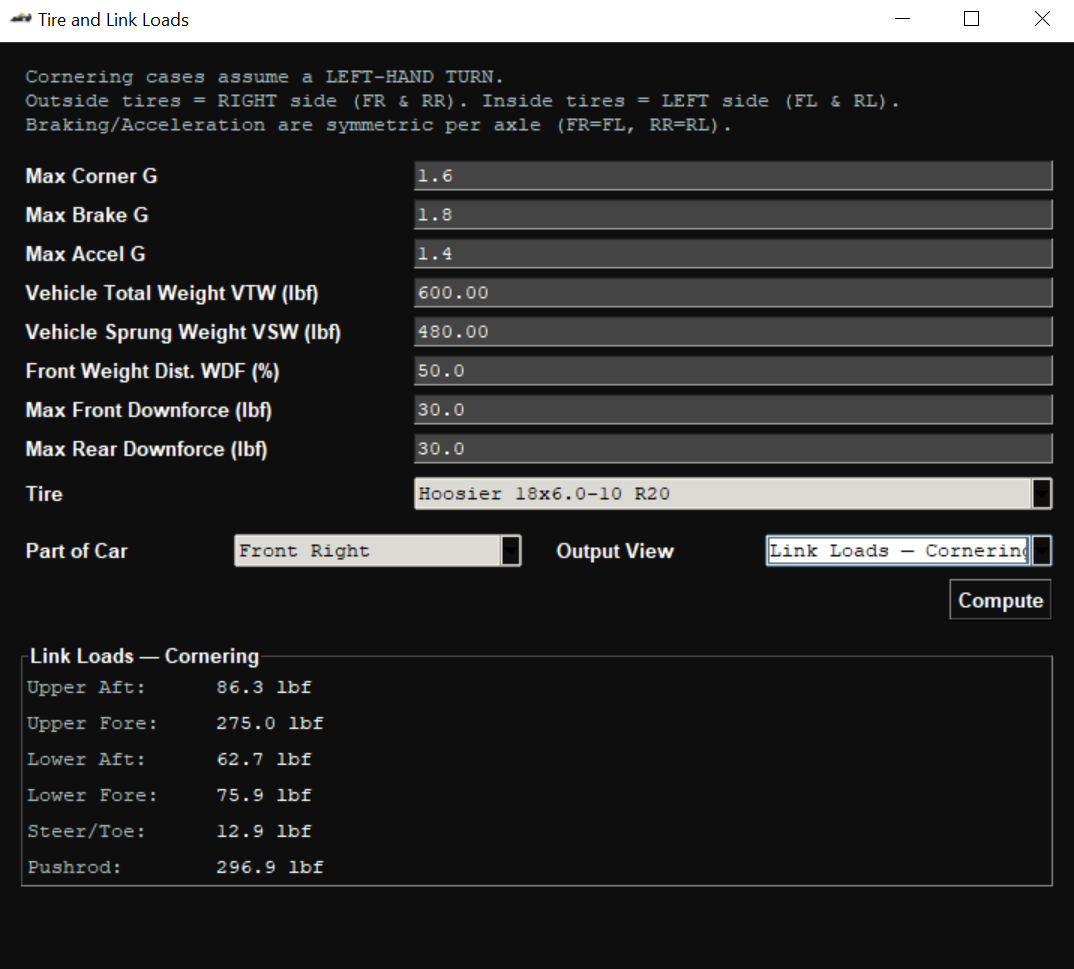

  • Calculate Tire Loads

  • Camber Curves

  • Link Loads

    Link Loads

Choose your plan

$30 monthly
$200 Annualy
